Cleaning Analysis with QCM-D: Revealing Surfactant Performance in Real-Time
Developing high-performance cleaning products requires more than just knowing what’s left behind after cleaning. To truly optimize formulations and protocols, it’s essential to understand how cleaning happens—moment by moment—under realistic conditions. Traditional “before-and-after” tests can’t deliver this level of insight, often leaving knowledge gaps that can slow down development and innovation. QCM-D (Quartz Crystal Microbalance with Dissipation monitoring) is a surface-sensitive technology that can help fill in these missing pieces, offering real-time, detailed information on the cleaning process as it unfolds.
What is QCM-D?
QCM-D is a surface-sensitive, time resolved analysis technology that measures mass changes and viscoelastic properties on surface-adhering layers at the nanoscale. For cleaning product developers, this means you can follow how soils are being removed from a surface, see how quickly the cleaning happens, and quantify how much residue remains after rinsing—all in a single experiment.
QCM-D provides:
- Time-resolved insight: Follow the dynamics of cleaning as they happen—not just before and after.
- Quantitative data: Measure soil removal rates, swelling (wetting) behavior, and remaining residue.
- Mechanistic understanding: Learn not just if a cleaning agent works, but how it works, under various conditions (e.g., temperature, pH).
Case Example: Comparing Surfactant Efficiency for Corn Oil Removal at different temperatures
To demonstrate how QCM-D works and its ability to reveal cleaning process dynamics, we performed a technical study where industry-soiled surfaces were reproduced by applying heat-treated corn oil to stainless steel. We then compared the efficiency of three different eco-surfactants—A, B, and C, all designed for low-temperature oil removal and recovery—in removing the oil across a temperature range of 15–55°C.
With QCM-D, we monitored:
- Uptake and swelling: How much water or surfactant was absorbed by the soil layer.
- Removal rate: How quickly the corn oil was removed.
- Total soil removal: How much soil that remained after cleaning and rinsing.
Results

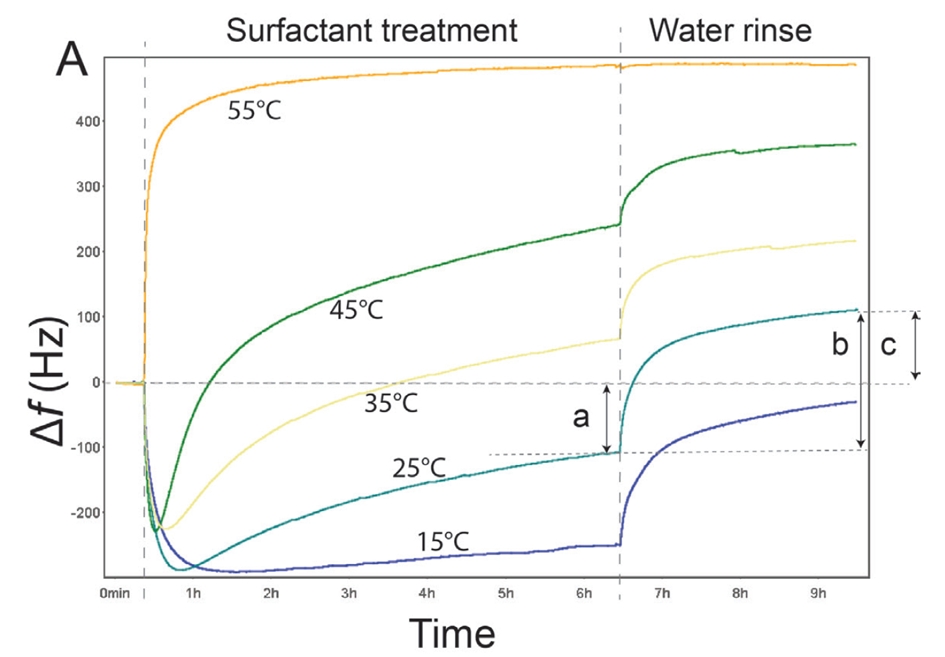

The QCM-D measurements revealed how the three surfactants interacted with the soil at the five different temperatures. Looking, for example, at the measurement of surfactant A, Fig. 1, at 15°C, upon surfactant exposure, there is initially a decrease in Δf, indicating mass uptake, followed by a slow increase in Δf, indicating mass loss. In the rinse step, there is a sharp increase in Δf, indicating that mass is leaving the surface during the rinse. Comparing the results from the five different temperatures for surfactant A, it is noted that the behavior is similar to that observed at 15°C, but the magnitude of the shifts is temperature dependent. The data shows that both the removal rate and the total soil removal are temperature dependent for this surfactant and increase with increasing temperature.
To highlight the main trends, we are here presenting a single example dataset. The full study, including comprehensive results and analysis, is available in the technical white paper.
Key Findings of the study
A comparison of the data for surfactants A, B, and C revealed the following key findings:
- Surfactant B showed the most consistent and effective performance across all temperatures, efficiently removing corn oil even at lower temperatures.
- Surfactant A (see Fig. 1) performed similarly to B, particularly at higher temperatures.
- Surfactant C exhibited high swelling but only achieved significant soil removal at the highest temperatures.
- Temperature impact: Both removal rate and total removal increased with temperature for all surfactants, but especially for A and B.
- Residue assessment: After rinsing, B and A left more residue on the surface than C, which was almost completely removed after sufficient rinse time.
Concluding remarks
If you are looking to boost the efficiency of your cleaning products and streamline your development workflow, QCM-D can provide detailed, mechanistic insights beyond what traditional before-and-after methods offer. Whether you are benchmarking new surfactants or fine-tuning complex formulations, QCM-D enables data-driven decisions that can help reach superior cleaning results.
Interested in the full study and practical applications of QCM-D in cleaning analysis? Download the technical white paper below to explore the details.
